With the final weeks of summer upon us, I’m glad to say that we’ve finally broken ground on canoe rebuilding. I’ve been delving into the depths of wood canvas canoe construction books, YouTube videos, discussions forums and phone calls, to figure out the next steps. Of course, we spent a lot of times outdoors as well. It’s been a pretty mild summer in Virginia thank goodness.
BlackberriesEastern Kingbird on the PIankatank RiverEastern KingbirdPiankatank River
We spent a good amount of time, first doing some careful demolition. Removing one piece at a time to get to the guts of the canoe. The outwales were rotted for the most part, these came off pretty easily. What was left of the stem bands and the keel were removed next. I was just amazed that overall, the wood seemed to hold up well, despite being stored in the Virginia elements uncovered for several years.
We had to cut out some of the old bolts to remove thwarts and seats.
The keel proved to be rather tricky to remove because the heads of the screws were corroded. Once upon a time, they were flat heads. Using a utility knife to carefully score out the old slot and then a few gentle raps on the head with a hammer loosened it enough to get purchases with a screw driver. Another approach would have been to use a Dremel tool to basically create a new slot in the screw head.

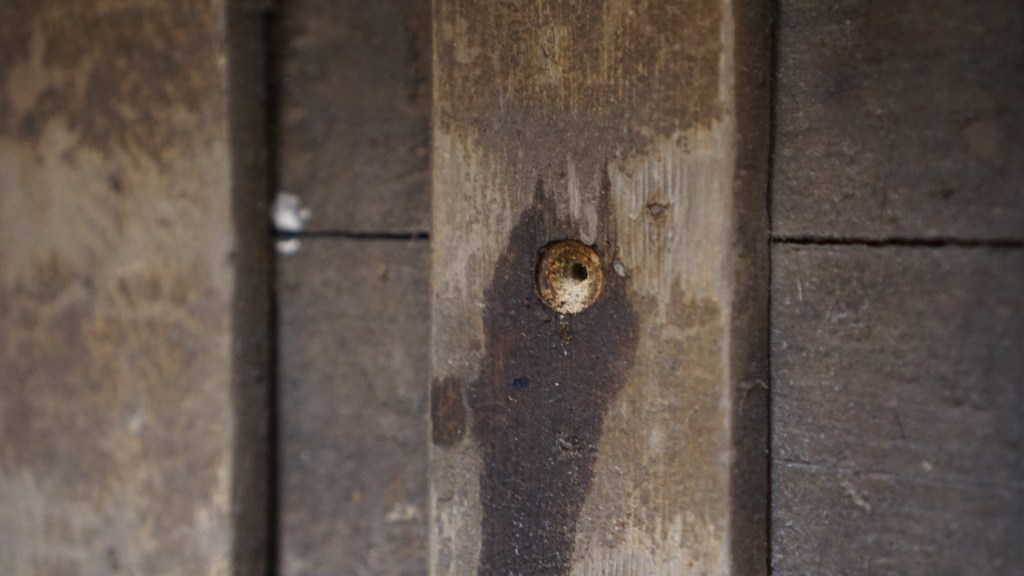

Screws that held the keel in place were a pain to get out

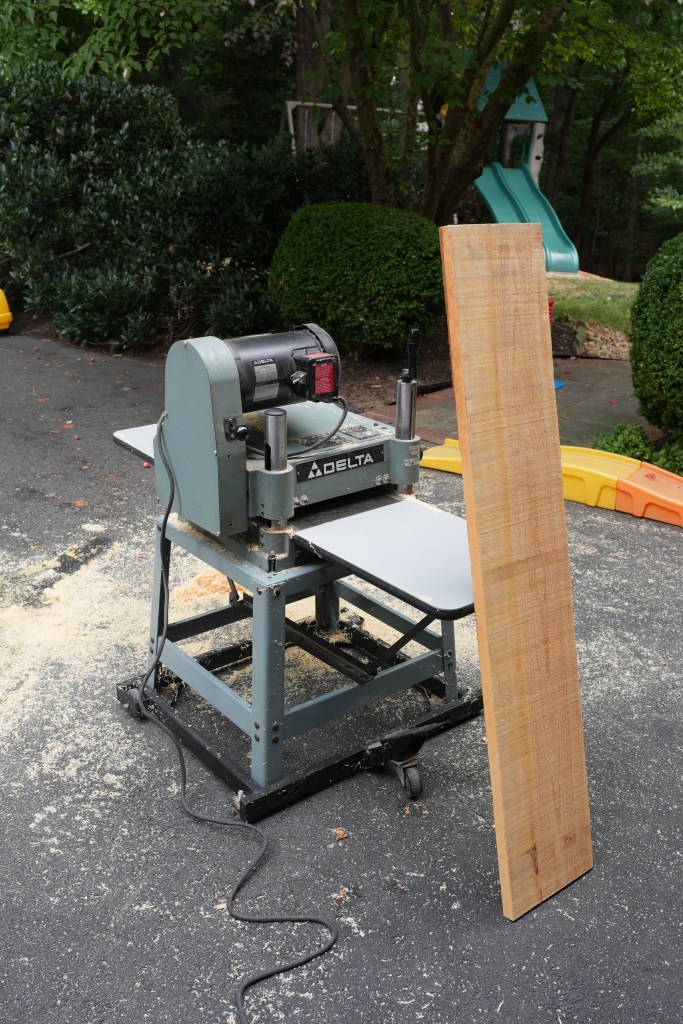

After numerous trips to lumberyards, Facebook marketplace searches, I made the decision to purchase my lumber already milled from a canoe builder. When it comes to Old Town Wood Canvas canoes, why not go straight to the source. Island Falls Canoe in Atkinson, Maine is run by legendary canoe builder Jerry Stelmok. He wrote the book: The Wood and Canvas Canoe: A Complete Guide to its History, Construction, Restoration and Maintenance (1987). I had a few pleasant discussions with him on the phone and after a few weeks, our supplies arrived! It was like Christmas, boxes of white cedar planking, ribs, new thwarts, tacks, bolts, canvas and much more. We also had to acquire some new tools as well as a clinching iron, purchased from Northwood Canoe Co.
It’s like Christmasclinching ironCanvas and goodies
One of the issues I ran into, that I haven’t really come across in any of the discussion forums or videos, is the fact that probably 80% of the canoe plank tacks were so severely corroded that they were literally falling off the canoe. When the canoe was first constructed, eastern white cedar was used to plank the canoe. These are thin 5/32″ thick boards that were steamed and tacked onto the ribs to create the shape of the hull. After 90 years, most of these were literally popping right off! As a result, the planking unstable. To preserve the shape of the hull, I started removing these corroded tacks and placed a few tacks to stabilize the hull, until they can be addressed properly. I did NOT fully clinch these tacks.
Clinching basically means that these specialty tacks (designed with a taper) are hammered into the plank and into the rib. A large piece of iron (the clinching iron) is held against the rib on the other end where the tack would exit. As the tack is exiting the rib, the tack hits the clinching iron and it curls upon itself back into the rib. The problem with working with nearly 100 year old white cedar, is the risk of splitting the planking. So to prevent this, I wetted the planks with water and then steamed it using a fabric steamer. Some people use irons. This softens the wood, making it less brittle, and less prone to splitting. The thwarts and seats were relatively easy to take out, once again, corrosion left very little to work with for the nut sand bolts. I ended up cutting several of the bolts to get the seats out.

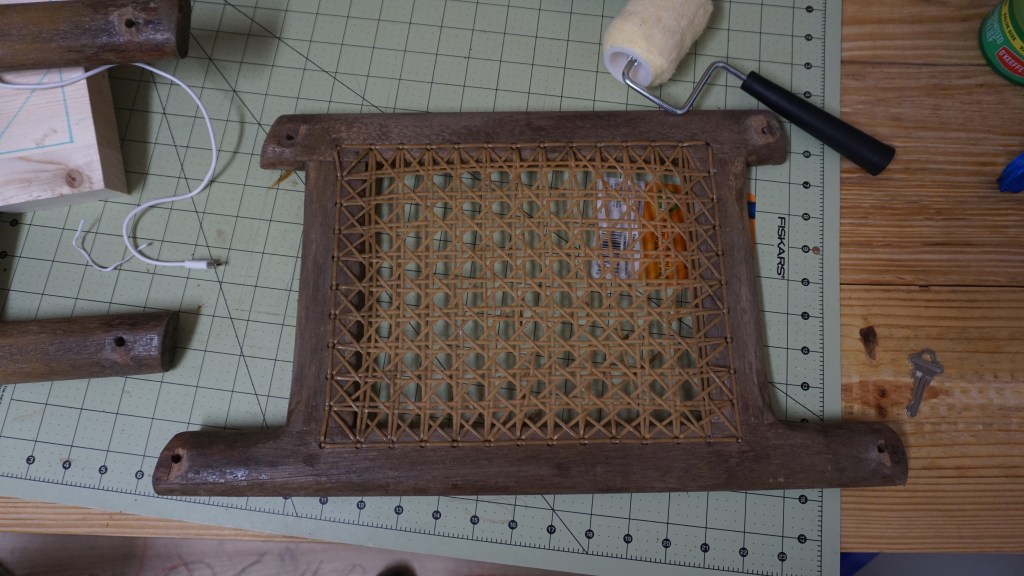

Restoring 90+ year old canoe seats, on an Old Town OTCA.

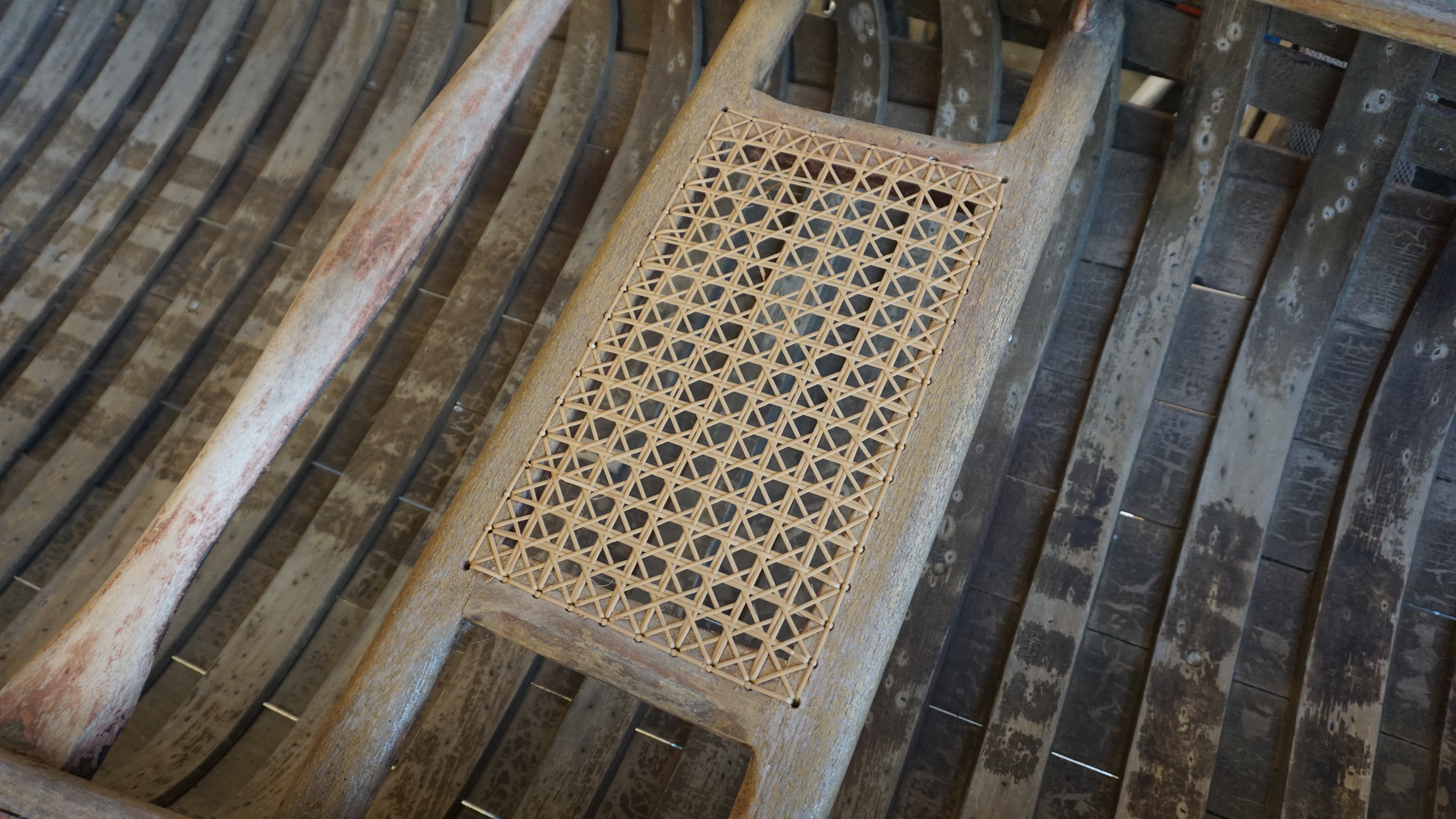

My son got to work cutting out the old cane, and we stripped the old finish and got to sanding. The seats seemed to still be in decent shape and we worked on bringing them back to their old glamor. We were actually working on the seats while we waited for the lumber to arrive from Maine.
After a few trips to the local lumber mills, I decided to purchase my lumber, right from Maine. Island Falls Canoe, in Atkinson.

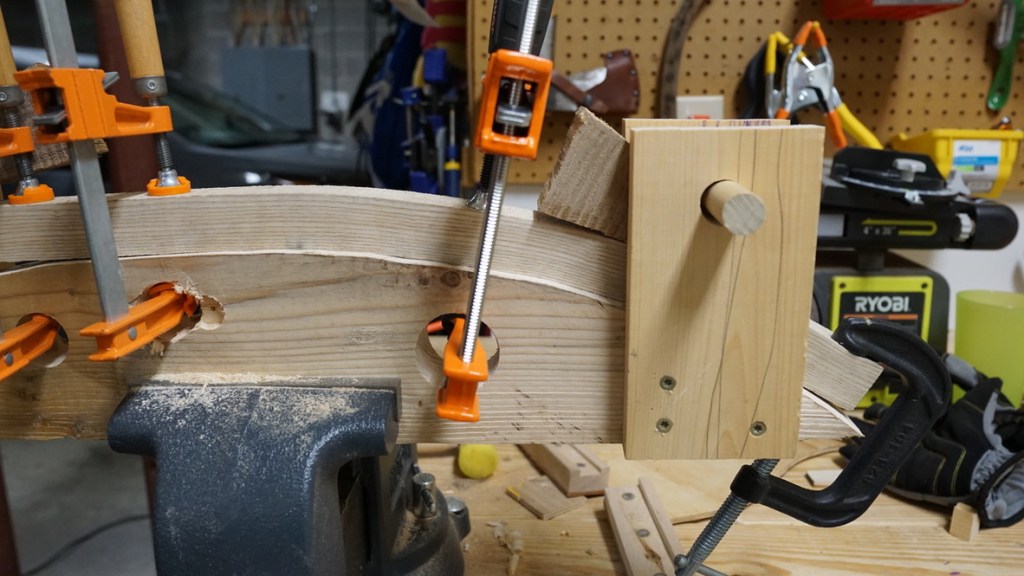

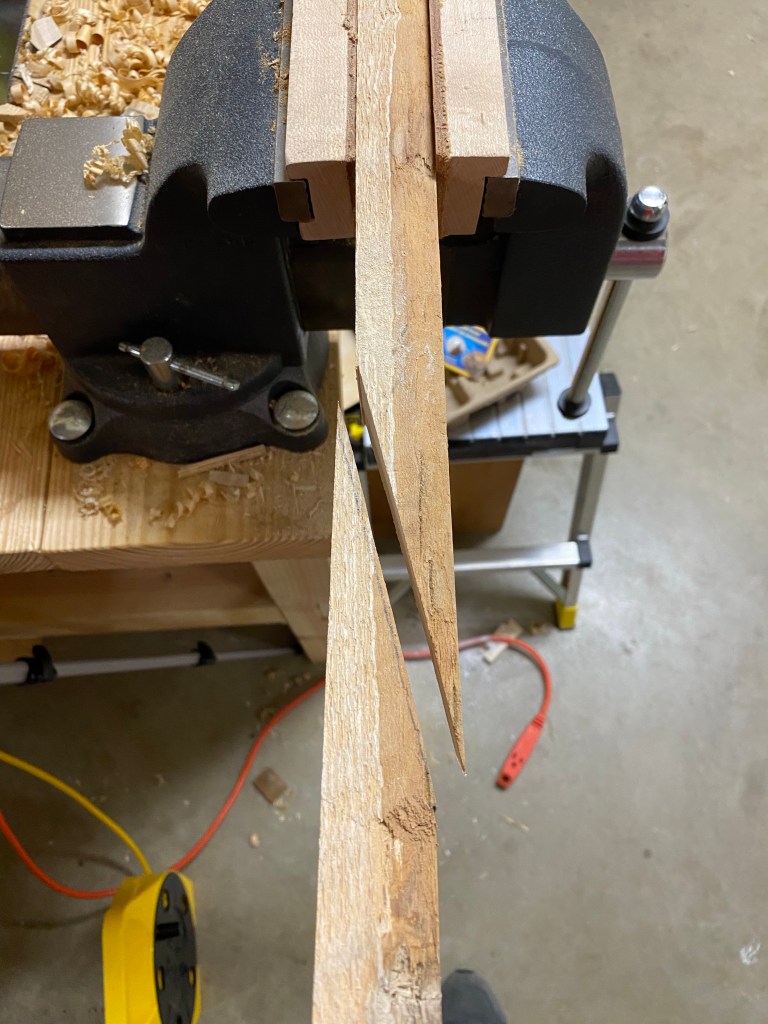

Once the hull was decently stabilized, we were now looking at taking out the stern, stem of the canoe . This is especially difficult to do, because the canoe was essentially built around the stem. This area of the canoe is especially prone to rot. In many scenarios, only one section of the stem would need to be replaced (perhaps 1/3 or 1/4 of the stem). There are different ways to scarf the new stem into the old, however, gauging from the amount of rot, I knew I needed a whole new stem. This is the part I’m working on currently.

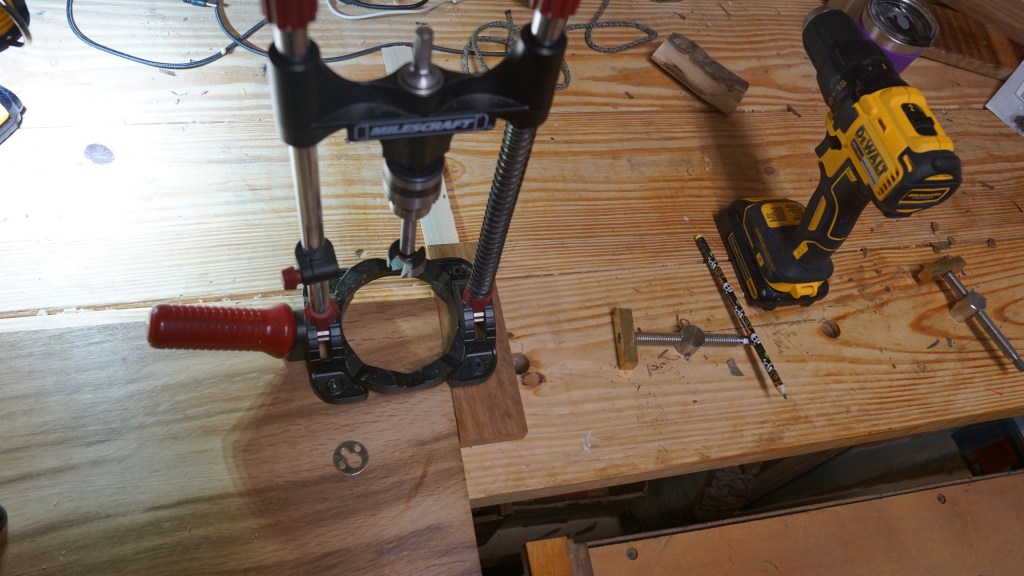

Was it necessary to fill all of the old tack holes in the ribs? Probably not, but it gave the shop mites something fun to do.
It is becoming more apparent to me that there is no cookie cutter way to restore/rebuild a wood canvas canoe. I found this interesting posted on the “Wooden Canoe Heritage Association” YouTube channel. It details the restoration of an “Old Town Ruston” wood canvas canoe. Through watching these videos, I gather different types and tricks to help with my restoration.
Interesting video posted on the WCHA channel about the restoration of an Old Town Rushton.
The weather has been getting milder and we spent many grand days outdoors. My daughter was able to go on her first canoe trip and I do believe she is hooked. She is asking for her own paddle like her brother’s. We will probably have to carve one of those as well one day. Alas, fall is approaching and we are ready for more! Stay safe and healthy everyone!
Taking my daughter out for her first canoe trip this past summer.Canoeing in Pocahontas State Park, Virginia.Side projects keep the kids interested. Like this canoe sign made from a CNC machine.Fall is approaching with cooler temperatures. We are looking forward to spending more time in the shop.
In typical Virginia fashion, we have experienced all 4 seasons in the past few days. There were days when I was out in a t-shirt, and then shoveled some snow the next day. Nevertheless, the first signs of spring have finally made their appearance. I’ve noticed some cherry blossoms beginning to bud and the occasional days of full sunshine beating on the face is certainly welcoming after another long pandemic winter. The warmer temperatures in the shop, is also helping to motivate me to get some things done.
After building our steam box, we really haven’t had a chance to do much. I have mostly been reading, and researching the art of canoe restoration. It definitely seems like a daunting task however, one that we willingly take on. I honestly believe that it might be easier to build a canoe from scratch, this one looks pretty beat up. Most of the ribs are cracked in more than one place, the gunwales are spent and the stems on both ends have suffered some degree of rot. The decks actually appear to be in decent shape and the seats as well. All of the diamond Old Town Canoe bolts will be changed out for new ones, and probably all of the planking will have to be replaced. I’ve actually really enjoyed reading about boats, and different properties of wood and the structure and framework of canoes. It doesn’t matter how slow you go as long as you don’t stop…

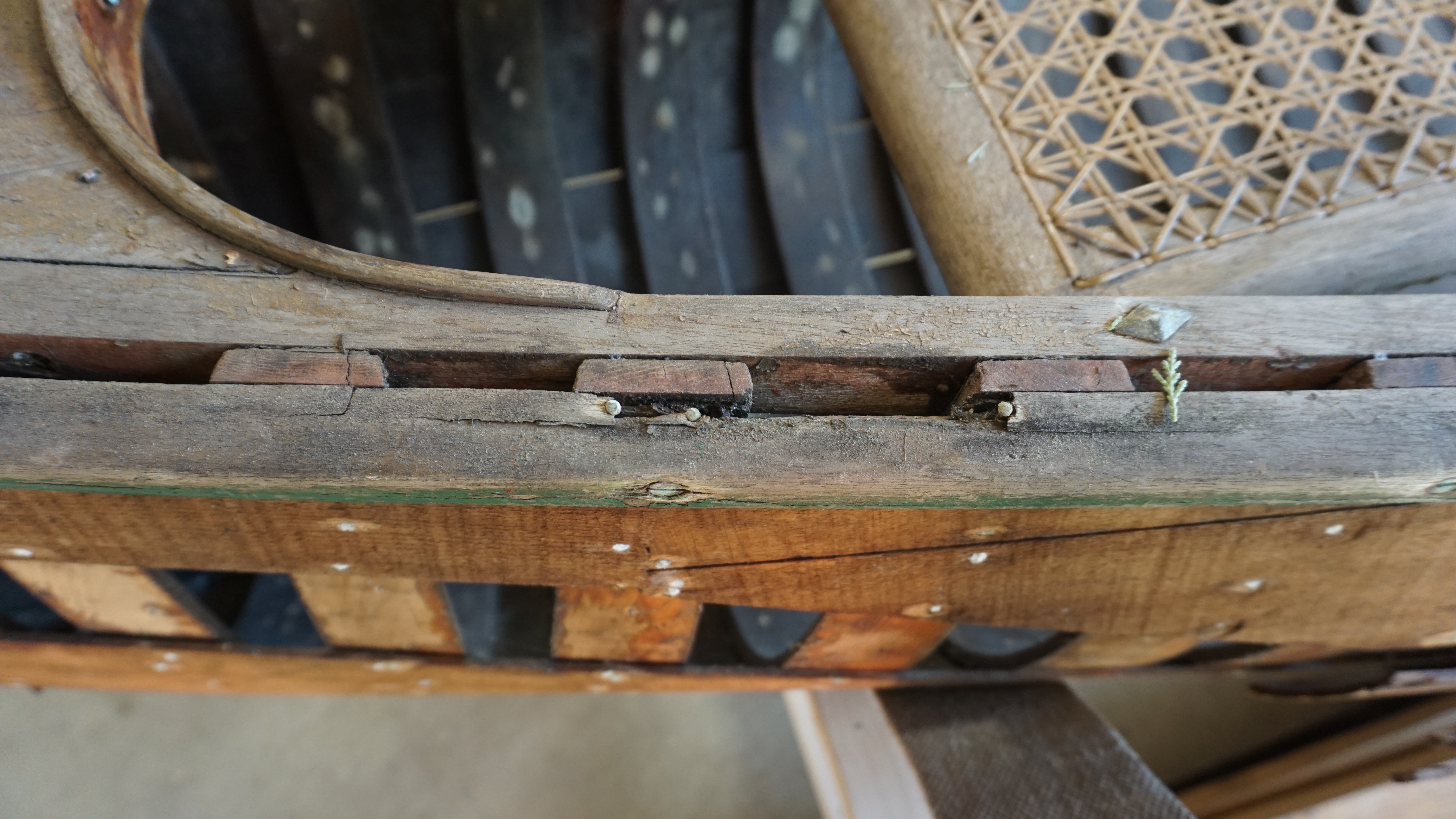

Most ribs are cracked.Diamond shaped bolts are Old Town Canoe hallmarksI doubt I’ll find planking this longwell….at least the seats look decent.
As a non-boat builder, my research pointed to the direction of the Wooden Canoe Heritage Association (WCHA) for further guidance. The WCHA is a nonprofit membership organization dedicated to preserving, studying, building, restoring, and using wooden and bark canoes, and to sharing information about canoeing heritage throughout the world. The discussion forums are particularly helpful, where boat builders can share experiences and troubleshoot through problems. It was here, where I was able to learn more about my canoe. It is certainly interesting to see what many builders are willing to restore. Some boats are more reasonable for the firepit, however, as myself, I find others that are restoring these vessels for the pure joy of it.
When it comes to Old Town Canoes, there is a way to find out more about your particular wood canvas model. There is a 4-6 digit serial number printed on the stem of the canoe, towards the stern and can be read from the starboard side. Often times, the serial numbers are faded and worn so I was fortunate that I was able to still make out mine. Through careful inspection with lighting from all possible angles, I was able to make out….#103607.
It’s there if you can make it out: “Serial number: 103607”. (Not pictured is the “17” that indicates a 17 ft long canoe)
Through the Wooden Canoe Heritage Association discussion forums, I was able to get help from a very kind member who was able to look into the specifications of this particular canoe and gain access to old build records. I find it absolutely amazing that this document still exists! After reading the form, I knew this was definitely her. 17 foot long OTCA model, Grade AA (top), with western cedar planking with gunwales and decks of mahoghany. This particular model also has a keel. The Design Color #10 is one of the paint schemes back then, which was mostly green, it is shown in the drawing below.
Old Town Canoe build record: Dates this canoe back to 1929-30! Special thanks to Benson Gray of The Wooden Canoe Heritage Association.
Western red cedar (thuja plicata) has a variety of uses in construction and carpentry. It has many properties that make it ideal for canoe planking. It is light, intrinsically rot resistant, naturally resistant to bugs, flexible, with a high tensile strength. My next task is to track down straight grain red cedar boards. With the new bandsaw, I hope to resaw these boards to get 5/32″ boards. In terms of the gunwales, I will unlikely be able to find 17′ long mahogany pieces, so I’ll likely have to scarf shorter pieces together. I’ll see what my journey through the mills bring me too. This is where the fun begins….stay safe and be healthy everyone.
This video, although certainly not politically correct, shows some of the steps of building a wood canvas canoe in an Old Town Canoe workshop. Amazingly as old as this video was, the canoe I’m working on was made at least 20 years earlier. The credit of this amazing vessel is to the First Nations People and the Native Americans who perfected it.
I knew from the beginning that the restoration of this Old Town canoe would require us to practice some wood steam-bending. This is a technique in woodworking where boards are exposed to steam in order to soften the wood fibers, allowing the entire board to be molded into new shapes. Once the boards are cooled, the wood will hold its new shape. This is how certain parts of the canoe were constructed, notably the many ribs which help form the frame of the canoe. Steam-bending wood can be used for several numerous other projects.
It was time for us to build a wooden steam-bending box. With this box, we would be able to steam wood for other projects such as the construction of furniture like rocking chairs, wine racks etc.
I purchased the Rockler steam bending kit, which includes plans as well as hardware for the construction of a steambox and then the actual steam generator and tubing. The construction of the box itself is simple. It doesn’t have to be pretty, only functional. This box will also be subjected to extreme temperatures and humidities so it will take a beating. It can be constructed out of either solid wood or plywood (external). If you decide to use plywood, make sure it is for external grade plywood as regular plywood would simply delaminate once you use the steambox.
My brother recently had to tear down sections of a wall in his house so he had a pile of scrap pine that we used. Nothing better than reusing old wood and giving it new purpose. In the restoration of this canoe, the largest rib that we would have to bend measures at nearly 4.5 feet. So the dimensions of our box was roughly 5′ by 5.5″. In general, for this size of steam generator, Rockler did not recommend creating a box longer than 5ft and with sides no longer than 6 inches. For larger steam boxes, you would might consider having a larger reservoir of water.
Cutting dowels is a lot of fun for a 4 year old.
The construction of this box is very straightforward. Basically, no wood glue is to be used because of the constant stress of expansion and contraction that the box will be under. Outdoor screws will do the job to hold together your box. Screws will also allow you to take apart the box if you should need to replace any sides. At the end of the box, a brass fitting is installed where the tubing will connect to from the steam generator. The front of the box, is a lid with a latch, sealed with weather stripping. Using a forstner bit, I drilled holes along the box with evenly spaced dowels to serve as a resting rack for the piece of wood to be steamed. The wooden board that you steam should ideally be elevated, so that the steam can circulate around the whole board. Remember, water will accumulate on the bottom of the box so a drainage hole should also be placed. This steam box will leak regardless, so either have a water collection bucket or steam outdoors.
After using some scrap pieces and a pocket hole jig, we attached some feet to the box for some stability. After a quick test on a small piece of pine, she is ready to go! Next step, damage assessment and materials ordering.
It’s hard for me to believe that the last entry regarding canoe restoration was back in June. Our progress has been slow but certainly steady. Amidst the throes of this pandemic, things at my workplace seem to have gotten busier….I’m seeing more patients and doing more surgeries….meanwhile COVID cases in Virginia continue to soar. Wear your masks and get your vaccines people!
We’ve been blessed with numerous wildlife sightings throughout the building process. One of most special was the birth of a white-tailed fawn right on our lawn. He was named “kangang” by my 3 year old son.
I’ve been finding some time every night, to go into the garage with my kids and work on something….anything….if only for 20 minutes at a time. Lately, I’ve been striving for more discipline, the practice of doing a little bit of work, everyday, in several different areas: exercise, work, learning languages, woodworking, music. It really is incredible what can be accomplished with just 30 minutes a day towards a goal.
Step 1: Building canoe cradles
We are grounding most of our work around the guidance of this book: “This Old Canoe” by Mike Elliott. It has proved very helpful so far.

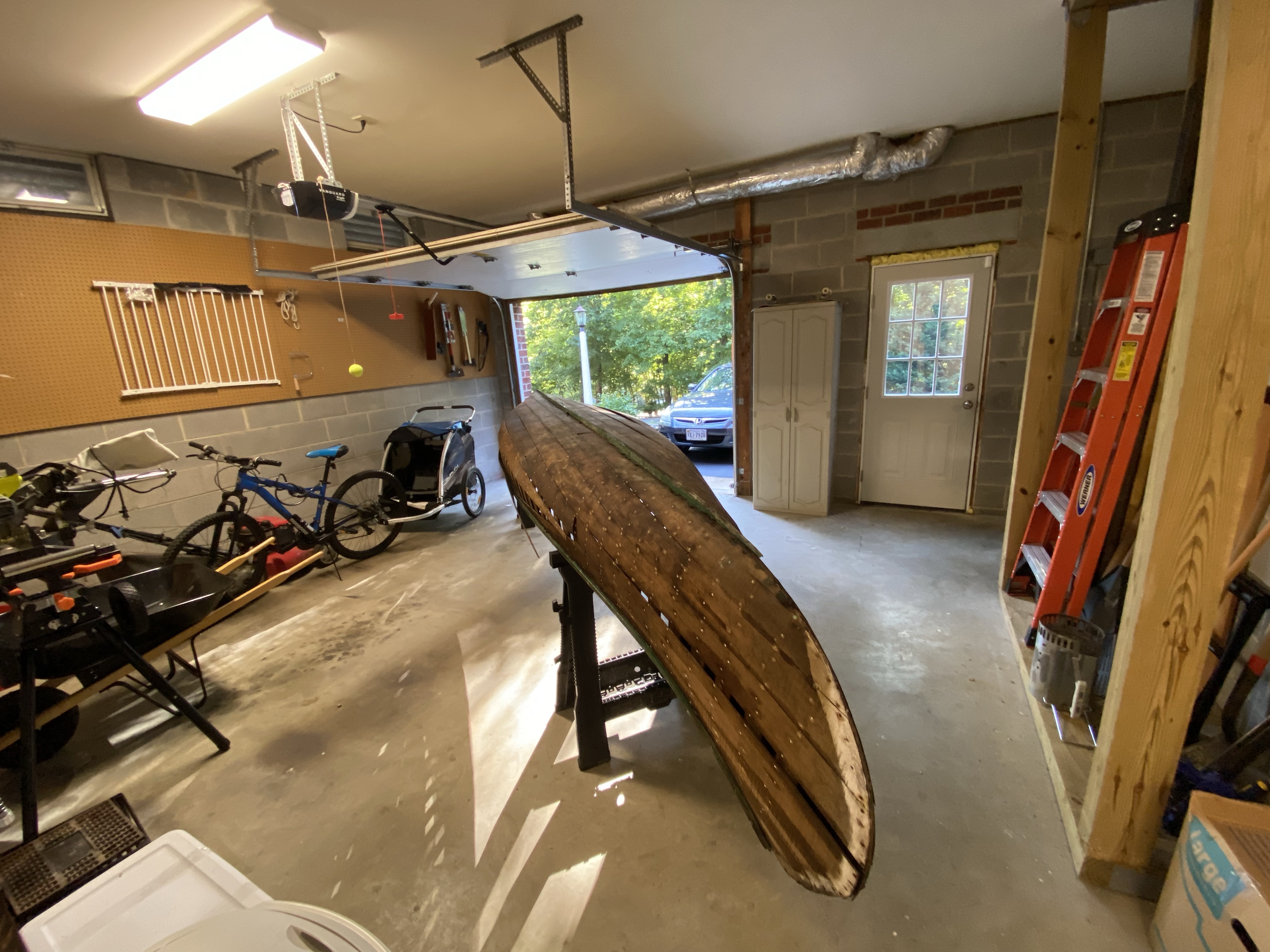

The priority was building a stable platform for working on the canoe. Flimsy and old cedar planks were coming off the side of the boat and it was simply not safe to keep the canoe on saw horses with children about, not to mention the strain it was putting on this old canoe. I’ve been reading the book: “This Old Canoe – by Mike Elliot”, and used the plans inside to build some basic canoe cradles. Basically out of 2x4s and old carpet stored in the attic. The slings on the cradle allow for an equal distribution of forces along the hull. Also, you can rotate the canoe along its long axis so you can work on different angles of the canoe.
Once the cradles were completed, we could breathe easy. The canoe was in a sturdy and safe platform, and most importantly it was out of the elements and I knew that it would not further deteriorate. Psychologically, it was a huge boost, knowing that from this moment on, this thing will only get better.
Step 2: The Workbench

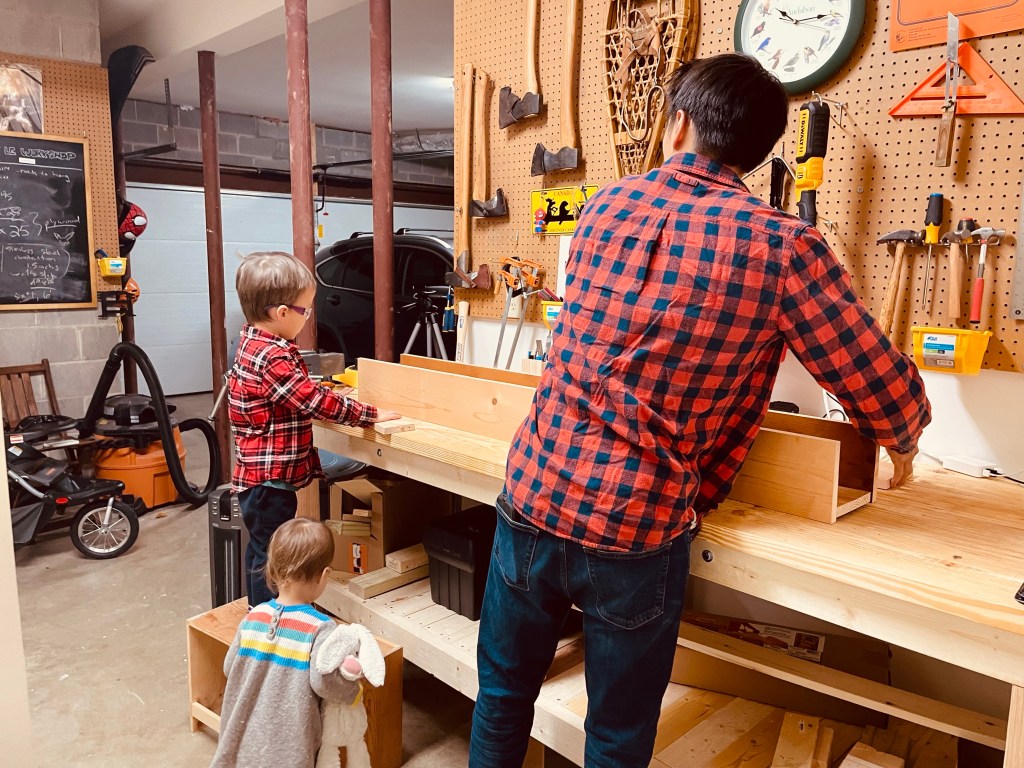

What we needed now, was a work area to launch our operation of repairing this canoe. We needed a workbench.
We decided to take down some old cabinets and free up some space for an 8ft bench. The cabinets found new owners through Facebook marketplace….they weighed a ton.
After looking at several different workbench plans on the internet, I settled on this one:
It was a very simple design and it seemed sturdy enough for our work. After many hot, summer day trips to Home Depot and a lot of sweating while sorting through lumber piles, I acquired all the wood that I needed. The cost of materials was less than $150. My son and daughter had a blast building this thing. My son, particularly enjoyed chiseling the half lap joints for the 2x4s. I didn’t have a table saw, so the cuts were actually just made using a compound miter.
We coated the table with a coat of boiled linseed oil. (Whenever you work with flammable oils like linseed, make sure your rags are disposed of safely. These can spontaneously combust. I generally soak the rags, and then leave them out to dry either in a metal can or on the drive way before disposing of them).
We subsequently had to paint the wall where the cabinets used to be and then replace the wall base vinyl which was easy enough.
Now we’re ready for the next phase……doing a thorough assessment of the extent of canoe repairs and figuring out a way to acquire the materials and tools necessary for the job. We are looking forward to working in a cooler shop now that autumn has arrived. Onward!
***As with all projects please make sure you wear proper eye protection. As an ophthalmologist (physician and surgeon specializing in eyes), I have treated vision threatening eye injuries from accidents in the workshop, construction sites and even in the gardens. In ophthalmology, it does not get more serious than an “open globe injury”. This is a scenario where the eyeball itself has an opening, either from a tear, blunt trauma or a projectile object. In the workshop, some of the worst injuries are from flying species of wood or metal that can penetrate the eye. The surgeries to repair these injuries can take hours and the visual prognosis often very poor. Prevention is key, WEAR safety goggles…PERIOD. ***
This is a photo of me repairing an “open globe injury” in the operating room. The eyeball in this case has been penetrated by a piece of steel. This was a high velocity injury. This occurred when the patient was hammering a metal stake with a sledge hammer. A piece of the stake broke off and went flying into the patient’s eye. The surgery was over 4 hours and the patient never regained meaningful vision. Wear safety glasses people.
June 26, 2021 was national canoe day in Canada. I guess it was meant to be, because this weekend we finally took the first steps into restoring an OLD and beat up Old town wood canvas canoe that has been sitting at my parents lot for years. I honestly don’t even know if it is possible to restore it, but I’m going to give it a shot. This particular canoe, has been sitting out in the bare elements for over 3 years……a decent wind could take off all the canvas. It looked as if wasps had ants had been residents in this canoe at some point. We all stripped the canvas and strapped her in the car and brought her home.

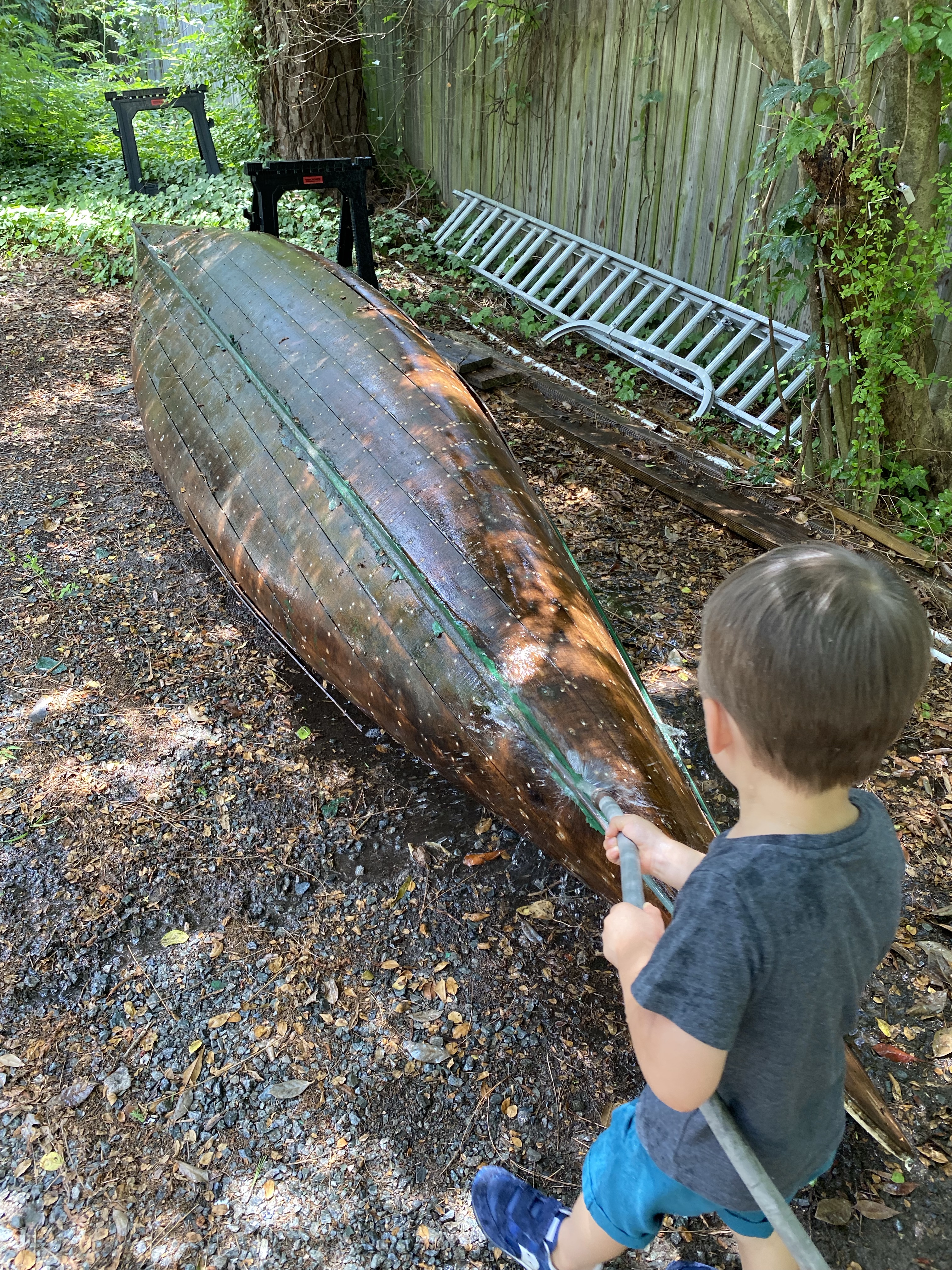

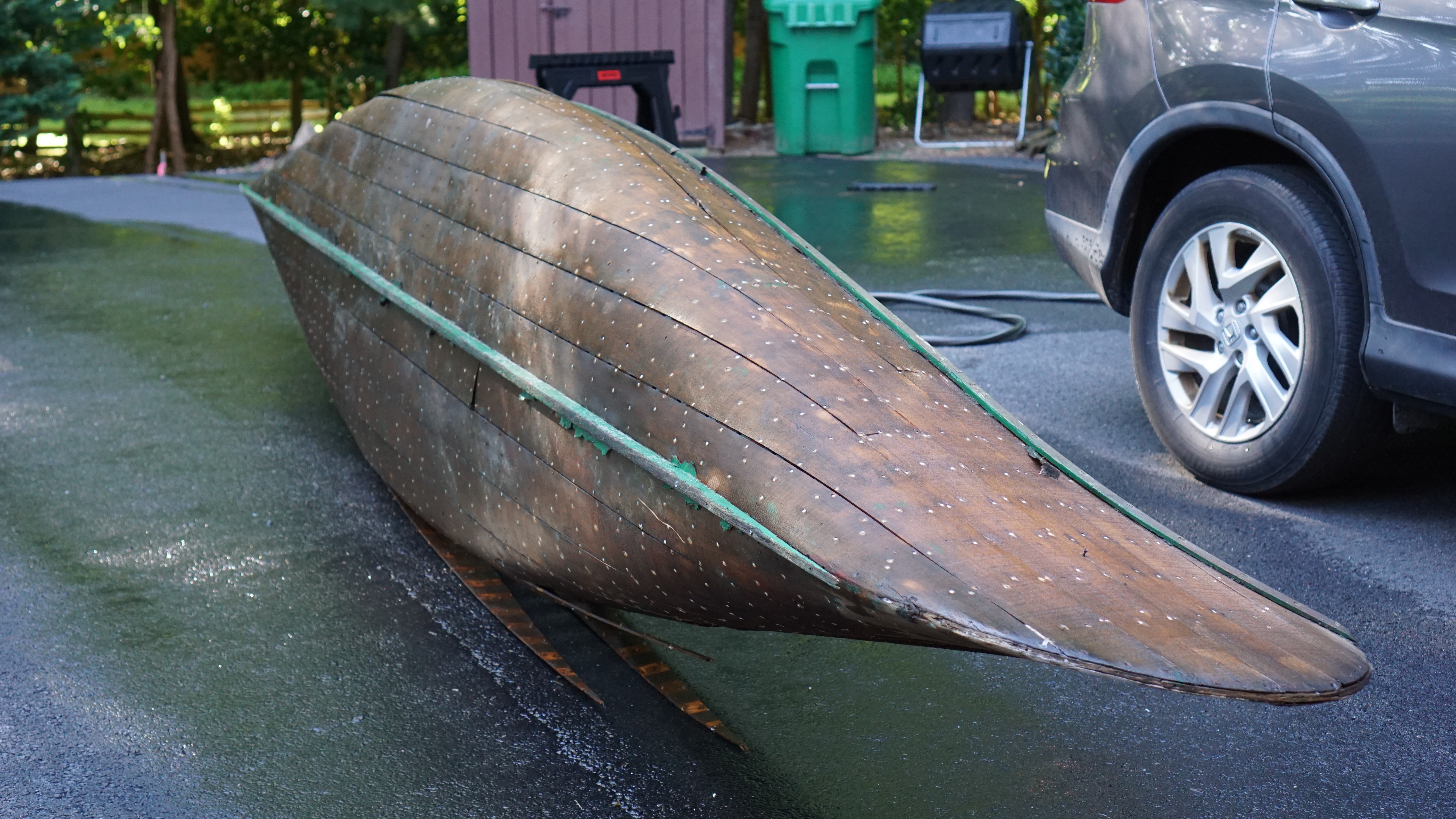

After 3 years of sitting out in the elements, this thing looks like a matchbox….still held together by its ribs.
I was surprised to see that the heart of the canoe….the ribs were all still in decent shape. Meaning, it had a shape. I plan to pick at this project over the next year until it’s done. No timeline, but just work as we go. After this weekend, at least I’ll know it’s condition can only improve. I need to build some canoe cradles pronto and let her settle in. I still have to set up a new workshop somehow along the way. Much to be done, but it’ll be a labor of love. Happy paddling to all.
From the moment he stepped foot in a canoe, my son has never been satisfied with just sitting and taking in the views….. He wanted to paddle! He was not even 2 years old and at the time there was not a paddle small enough for him. This was my chance to make him one. As with all projects, we both learned a lot and had a blast making it.
His first canoe trip.
Selecting the wood:
Traditionally, canoe paddles are made from hardwoods. The definition of a hardwood is a species of tree that will yield a seed that has a coating on it, either in the form of a fruit or a shell. (Oak, maple etc). Softwoods, yield seeds that do not have any particular coating. Example: many conifers. The terminology is sometimes misleading because there are some softwoods that are actually harder than hardwoods, but in general, hardwoods are usually indeed harder. These trees take much longer to grow to the equivalent size and as a result are usually denser.
For a project such as this, you will likely not find the board of wood that you need from Lowes or Home Depot. Your best bet is to go to your local lumber mill or wood working store. In this case, we were fortunate enough to find our wood from Woodcraft. If you haven’t spent much time in a lumbar yard, some of the terminology might be confusing. You will hear the term “board foot”. This is the unit for which wood is sold. IT is misleading because it is actually a unit of VOLUME not length. A board foot describes a piece of wood that is 1inch thick, by 12 inches wide, by 12 inches long. Hence 144 cubic inches. For our project, we used a 3′ x 1” x 4” foot long piece of hard maple.
When you are selecting the wood, make sure that there aren’t any knots or wood defects in the areas that you will be using, ESPECIALLY in the shaft of the paddle. These knots can lead to weakness in the paddle and could eventually fracture down the road.
Equipment/Materials:
hand bench plane (I used a #4 Wood River plane)
spokeshave
jigsaw or bandsaw
sandpaper (120 and 220 grit)
woodburning pen (optional, if you want to add designs to the wood)
clamps
tack rag
spar varnish
woodstain (if you want to stain the wood)
linseed oil (optional)
orbital/hand sander
protective eyewear
Selecting the design:
When selecting the design of the paddle, keep in the mind where the paddle will be primarily used. Is it flat water? whitewater? tripping? leisure paddling? There are numerous types of canoe paddle designs to choose from. These mostly differ in the shape of the blade of the paddle. Different paddle shapes will move different amounts of water. I’ve always prefered the beaver shape paddle, it is not too wide and it is not too narrow.
The Woodworkers Journal: provided a template for one of their Northwoods canoe paddle. A beavertail shaped paddle. I didn’t use these exact dimensions because we are completing a scaled down version for my 2.5 year old son. But I was influenced by the overall shape. Notice how the design templates are for one half of the paddle, when you are finished tracing that half, flip it over and trace it again to create the complimentary side. This will allow for the most symmetrical template possible. If you’re going to making many paddles over the years, consider making this template out of wood for safe-keeping over the years.
Once the outline has been drawn on the paddle, use a bandsaw or a jigsaw to cut out the paddle. If you spend extra time making the cuts as precise as possible, this will save you time later with the hand carving, shaving and sanding. I used a Bosch jigsaw.
Here is the video of the northwoods canoe paddle making process.
2. Planing
The key point to make during the remainder of the carving process is to maintain symmetry through the axis as well as throughout thickness. Use a gauge to mark the very center of the board on it’s axis as well as its thickness. The line, will let you know how close you are to your desired thickness of the blade. You may decide to vary the wood thickness based on the type of wood as well.
When working on a project like this, I want to emphasize the importance of knowing your tools and how to maintain them and to keep them functioning at their very best. There is no better example than the bench hand plane. If your tool is properly sharpened, maintained and tuned, this part of the project can be the best part. If your plane is not set up correctly, this could lead to a very frustrating experience.
In addition to keeping your tools finely honed, it is crucial to take into account the wood’s grain direction. Ideally your board is free of knots, this will make for the easiest planing. If there are knots, just be cautious of the grain drain direction change in these areas which could leave to tear outs. One way to battle this is to take shallower cuts if necessary. There are numerous tutorials online about how to read grain direction on a board.
Here is a useful video on how to set up a hand plane.
The Handle
The handle is probably the most difficult part of the carving process. There are many different methods to tackle this portion. Some paddle companies will actually do this part all by a large drum sander. Others will use files to whittle away the handle. I prefer to use the spokeshave, although this can be a little, especially if you are making sharp turns. I sanded parts of the handle afterwards with a belt sander.
Watch this craftsman at Shaw and Tenney (an oar and paddle company based in Maine) shape most of the paddle using a large drum sander. Some people will say that this method is not truly “hand made”. Nevertheless, the precision is impressive.
Woodburning
This step is entirely optional; I really wanted to put a logo on our canoe paddle, with a maple leaf (representing our Canadian heritage) and an oak leaf to represent our currrent home, Virginia. Similar to the wannigan I constructed, the wood burning process is a very enjoyable part of the paddle making process. Now if you were a professional furniture or paddle maker, you could consider just getting an ironing brand. Who knows? Maybe one day we will start canoe paddle business. It certainly seems like there are quite a few out there. There is one paddle company in Minnesota named: “Sanborn Canoe Company” that appears to be doing well. They specialize in artisan paddles.
The finish:
There are different ways that you can finish your canoe paddle handle. While some people will varnish the entire paddle, others leave the handle unfinished. I opted for the latter. I left the handle unfinished and unvarnished. I later added 3 coats of boiled linseed oil on the handle. The decision to oil or varnish your handgrip is purely personal preference. I found that over long canoe trips, the feeling of a varnished hand grip can make your hand a little raw after thousands of strokes. Finishing with linseed oil, gives the handle a buttery smoothness, similar to an axe handle. Over the years of use, the grip will darken naturally.
Personal preference, but I left the handle, unstained and unvarnished. I used 3 coats of boiled linseed oil to give it a buttery smooth finish, that will feel much better in the hands. Over time, the wood will darken naturally from the oils on your hand as well as the elements.
In conclusion:
For the canoe enthusiast, I can’t think of a more rewarding experience than using a paddling that you’ve created. It is also a fantastic father son bonding experience. As with other projects, I always find that I learn so much from even the smallest of projects. In this case, the big take home point, is that maintenance of your tools and knowing how to calibrate and hone them is essential to getting a precision job done. The hand plane was a joy to use once sharpened and calibrated. This holds true for the spokeshaves as well. Obviously with any project, the use of a work bench with clamps to suspend your work also makes the task of carving your paddle infinitely easier. Have fun.
**This is the best canoe paddle carving I have found on the internet. It features Ted Moores (craftsman) and this video from the 1990s was produced in Ontario, Canada.**
If you have spent some time canoeing up north, you might have run into paddlers lugging around a heavy wooden box along for the ride. Oddly enough, the paddlers hoisted this box on their back, with a thick leather strap banded across their forehead to support the weight. Inside this mysterious box were plenty of camping treasures: pots, pans, lights, games, matches and more. This traditional piece of canoe gear is known as the wannigan or wanigan. Essentially, it is a wooden box that serves as a mini camp kitchen – storing cookware, food and goods on a canoe or snowsledding trip.
The tumplines that are used for carrying these boxes are just as interesting. They are thick and durable bands of leather that serve as a harness for these heavy boxes, and they allow the wannigans to be “tumped”. For over 200 years, wannigans have been on canoe voyages. Their use can be tracked as far back in the hands of the hardy voyageurs (french canadian fur trappers). For them however, this was not a recreational camping box, but functional storage device that they hoisted through hundreds of miles of mosquito-ridden boreal forest, day in and day out. Life for them, was certainly hard.
The wannigan can make even the most remote of places, feel like home.
Today, the spirit of the wannigan is very much alive and well in all parts of canada and the northern USA. There are certain camps in Ontario that continue to use traditional equipment such as wannigans on their canoe trips. Camp Keewaydin is a fine example. At these camps, children hoist these heavy boxes with them through Canadian boreal lands as they make their way through expeditions on their own.
There are those that feel that the wannigan is impractical or just downright unnecessary in the age of waterproof plastic bins. Love them or hate them, I believe that wannigans help remind us to exercise a little bit more caution on canoe trips. They remind us of the history of canoeing in Canada and serve as an important link to our past.
I’ve always wanted to build one to for the family and to keep traditional way of canoe camping alive. More importantly, I wanted something to build and share lasting memories for the kids.
Step 1: The design
The iconic Hudson’s Bay Company stripes on one of their point blankets.
The most important part of designing your wannigan is building one that actually fits your canoe! Since most canoe hulls are pretty close in size, the dimensions of all wannigans are relatively similar. Most wannigans are simple box designs, although there are some out there that are actually curved to the hull of the canoe.
Most wannigans are stained after their completion in a wood stain of one’s choice. I decided I wanted to create on in a more artisan fashion. In keeping with the tradition of this old piece of gear and the history of canoeing in Canada, I decided to paint this wannigan in the tradition of the Hudson’s Bay company. Known as one of the greatest companies in the world, this British company played an integral role in shaping the landscape of Canada and the fur trade. I always thought the classic Hudson’s Bay color scheme looked pretty cool. Basically plain white, with stripes of indigo, yellow, red and green, in that order. This color scheme and pattern was originally used on the Hudson’s Bay “Point Blanket”. This wool blanket was sold during the 1700 and 1800s and an item frequently traded with amongst First Nations people. The “point” system was a series of black lines at the corner of each blanket along the selvage. The number of lines would indicate how large the blanket was when it was unfolded. The pattern and design is seen today on numerous Hudson’s Bay Company goods, such as mugs, clothes, towels, canoes and even stuff animals.
If you are interested in learning more about the Hudson’s Bay Company, here are two great links.
Most wannigans have a lid that is flush with the sides, making the outline an even box. My brother created a wannigan in this style and we noticed that on trips with heavy rainfall, the wannigan actually started collecting water inside. To combat this problem, he cleverly sewed a Hudson Bay flag skirt for the wannigan which eventually worked to keep things dry. I decided in my design that I wanted to avoid this problem all together. I was going to make a lid that was slightly larger than the dimensions of my main compartment.
Duluth waxed canvas canoe packs, and wannigan with HBC skirt.
Creating a lid with a lip, would also allow me to wood burn a chessboard on the under surface to play during rainy day under the tarp or by campfire at night. The lip, would work to naturally keep the chess pieces from falling off the sides.
Step 2: The frame
I wanted to create a wannigan that did not have any metal screws. This one is held together by it’s joints as well as occasional wooden pegs and of course wood glue. The the large sides are from plywood and the ends are pine. While constructing the box, it certainly helps to invest in several large clamps at the ready. I subsequently applied several layers of colonial maple wood stain on the wannigan.
Finishing the lid.
Step 4: The fiberglass.
While some May consider this next step to be unnecessary, I knew it would add many benefits. Yes, I’m talking about adding a layer of fiberglass on the inside of the wannigan. This layer would not only strengthen the box, but would also make the inside waterproof – also making spills infinitely easier to clean. I’ve never worked with fiberglass or epoxy resin for that matter and this proved to be the most challenging step. One thing I learned was to mix small batches! In larger quantities I found that the epoxy and resin once mixed generated a lot of heat and solidified very quickly. It is of utmost importance to mix as accurate ratios as instructed as possible. This is a messy business so make sure you’re protected and working in a well ventilated area.
Step 4: Wood-burning
This was one of my favorite parts of the project. With the help of my brother, we tracked down several hudson bay logos on the internet. I was looking for one that was actually NOT as finely detailed because that would prove to be much more difficult to burn. Once you are satisfied with your design, print the logo out in “reverse”. From there, I used the hot pen and a flat surface to heat the paper and ink onto the wood. This would allow just enough ink transfer onto the wood so you can burn your design into it. I noticed that woodburning is not as easy on a softwood such as pine. Woodburning the cheeseboard also proved to be quite laborious however still enjoyable.
Step 4: The painting
This hbc canoe, and it’s contrast of wood and paint was where I got my inspiration for this wannigan design
This process actually took the longest. To ensure that the white was actually as “white” as it could be with clean stripes, I had to make some careful preparations. First off, it is critical to use a primer before the paint to soak up any stain. I gave this layer of primer a full 24 hours to dry, I wanted to prevent any peeling of paint because I was going to be using a lot of paint tape. After it was completely dried, I applied 3 coats of white paint, latex, and water based. Once this layer was completely dried I carefully taped the areas that would be striped. To make sure that the colored stripes would NOT BLEED ONTO the white paint, I actually painted OVER the taped margins with white paint to fill any possible micro gaps and for capillary action to soak up any potential paint. This is a CRITICAL STEP.
Step 5: The finish
Choosing the finish was actually more difficult than I thought. Typically, for any stained wood surface, you have a variety of options. For something that is going to brave the elements, you want it to be UV protected as well as water resistant. For such purposes, marine spar varnish (an oil base) is usually preferred. I realized that my project was different than just stained wood…I was working with stained wood as well as carefully painted pattern with a mostly white background. The pure white color posed an issue. Most spar varnishes will actually YELLOW the white.
I had to search for quite some time before I was able to find the finish that would NOT stain the white. It was a water based spar varnish that particularly says: “no yellowing”, make sure you look for that statement, because there are plenty of water based varnishes that will actually YELLOW your project. Believe me, you do not want to sand and re apply the finish. Another method is to have a sample test piece of wood that you can test the finish on. The water based varnish dries very quickly so you have to work relatively fast. Once the coat is totally dry, usually in about 3 hours, VERY gently run a 400 grit sandpaper over the surface to remove any bumps that may have developed. You ARE NOT sanding at this point, it is a VERY gentle grazing with the sandpaper. I ended up applying 5 coats of water based varnish to the wannigan.
Step 6: The tumpline
Another piece of traditional canoe wear, is the tumpline. Classically this Is a piece of leather strap that is tied to the canoe or waningan to assist in carrying and distributing the weight. The broad band of leather is placed over the forehead and the load is rested on the upper back. It sounds like an unusual way to carry loads but it actually works to help ease weight from the shoulders.
you can virtually use any type of rope for the tumpline but I wanted this thing to last the years and also to be crafted in the traditional sense. I purchased a leather tumpline from “Pole and Paddle” for $85. A bit pricey but worth it in terms of quality.
Conclusion:
As with most projects, the construction of this wannigan, turned out to be a much larger task than expected! I certainly don’t consider myself a woodworker but I tackled this project to also learn more about the craft. I was happy that I got my first experience with epoxy resin and fiber glass. I also have a much larger respect for the construction of a level and even box! I also got to try wood burning for the first time. All of these skills will come in handy in the future for bigger projects. At the end of the day, I was certainly glad that I built it. Although large, difficult to carry and heavy…….a canoe trip just wouldn’t be the same without this treasure chest. When you are out in the middle of boreal forest, with the water lapping on the sides of your canoe, and the distant calls of the loon fill the air, it brings me great satisfaction to know that I have a trusty kitchen with me, filled with tools, games and memories.
As I stare at this untouched wannigan, I wonder where this box will take us? How many seasons will it last? How many lakes will it see? how many portages shall it endure? and what adventures lie ahead? Only time will tell….
Writing during a trip is always a fulfilling experience. Whether you are noting waypoints on a map, making a quick sketch of the landscape, or jotting down memorable moments, such acts allow you to slow down and reflect during a journey. In my mind, there is only one place to log such entries, an old fashioned hand-bound leather journal. I wanted to make something that was durable, handsome and consistent with the tradition of my field outings. Let’s get to it.
Materials: vegetable tanned leather cutting blade cutting board leather dye leather conditioner leather edge beveler waxed thread parchment paper metal ruler stitching awl needle nose pliers hammer
Step 1: Creating the signatures
The first step in making a journal, is to decide how many pages you want to bound, and then dividing them into signatures (unit of folded pages that will be stitched). For instance, if you wish to have 50 sheets in your book, you might want divide them into signatures of 5, each signature having 10 pages. Different types of paper can be used however I preferred to use acid-free parchment paper for the texture and look of the journal.
Step 2: Preparing the leather
Different thicknesses of leather can be used and this will be entirely up to you. You can purchase boxes of scrap leather from Amazon for less than $25 dollars. For this project, a thick vegetable tanned leather was used to give it the durable and thick appearance I wanted. The leather was cut to leave approximately 1/2 inch of leather bordering all of the pages. Once the leather has been cut, you will notice that the leather can have some fraying of fibers from the cut edges. This is where you will use an edge beveler to clean up all of the edges of the leather, giving it a nice and finished appearance.
preparing the cut
beveling the edges
template
Step 3: Preparing the leather for stitching
In order to assure that all signatures are sewn at a consistent distance from each other, I created a template. This way, all holes will be exactly where I want them to be positioned on the leather. Also, in the future if I decide to create a leather journal with similar dimensions, I could easily use the same template. Depending on the thickness of the leather, this task can be a little time consuming. I initially made the holes with a stitching awl, and then subsequently widened them with a thicker needle and hammer. Needle nosed pliers were also used to help pull the needle through the holes. Once you are satisfied, the leather can also be softened at this stage. This can be accomplished in many ways. One method is simply to manually flex the leather to give it a more broken in feel. Another way is to use rubbing alcohol on the leather and then add petroleum jelly to penetrate the leather.
Step 4: Staining
This can be accomplished with a variety of different stains and colors. I decided to use a stain from Ecoflow called acorn born. It is important to use an old clean cloth for this step to assure that you rub the stain evenly throughout the leather. If not, the stain will be absorbed more readily in some areas of the leather than others, causing an uneven appearance. This may not be a bad thing, as some of you may opt for this appearance.
acorn brown
staining
Step 5. Stitching the signatures
Stitching was completed using a thick waxed thread designed specifically for leather use. This was a lengthy process considering I had 8 signatures to sew in place.
Conclusion:
In the end, I was overall very happy with the journal. It feels sturdy and strong and the acorn brown stain came out looking fantastic. It is an overall quick process and with the proper leather tools can be a very fun project. I encourage any one who has ever wanted one to give it a shot. This will definitely be accompanying me on my field and canoe trips.
For the longest time, I’ve wanted to create the most important tool in bushcraft. The knife. There are an endless style of knives out there, however I found myself drawn to scandinavian steel and grind. Norway, Sweden and Finland are a few of the countries that have a long standing tradition in superb bladesmith with companies like Helle, Mora and Enzo. Up until this point, I have used my Morakniv as an all purpose knife, however I wished to own one with a figured handle. Instead of purchasing a knife, I decided to make one.
Carbon steel blade, forged in Karesuando, Sweden.
Choosing the steel.In the simplest sense, steel is combination of iron and carbon. There are numerous different types of steel with different properties. Different alloys can be added to provide these properties. When it comes to forging a blade, the key distinction is whether you want a simple carbon steel blade or a stainless steel blade. The stainless properties come from the addition of chromium to the iron and carbon. The chromium provides rust resistance and flexibility but at the sacrifice of the hardness of the blade. To qualify as stainless, the overall composition must be at least 10.5% chromium. Stainless steel is the choice for several folding knife makers such as Victorinox, because of the low maintenance required with this material. Carbon steel on the other hand, is more prone to rust and corrosion, however many prefer this steel in bushcraft because it is harder and can hold an edge for a much longer time if properly maintained. It is also an easier steel to sharpen in the field. I could go on and on about the different steels that are available for knife making but to keep it short, I decided to go with carbon steel, particularly from Sweden.
Karesuando, Sweden: The most northern town in the country is known for producing superb Scandinavian blades. Photo courtesy of Stephen Hudson. http://stephenhudson.net
Karesuando is the most northern town in Sweden, it is known for producing superb blades. I purchased mine from Thompson’s Scandinavian Knife Supply . An excellent supplier of anything knife related including stabilized wood, pins, and bolsters. They have a variety of blades to choose from.
Choosing the wood. This was an easy choice for me. Curly birch. A wood that in my mind exemplifies the culture of canoeing in Ontario. When purchasing the wood, it is key to choose “stabilized” wood. This means that it has been dried thoroughly and is no longer prone to movement. The cost of the wood would also vary depending on how much figure is present.
Chiseling the outline of the tang, was a simple process and completed by hand and chisel. I like the Karesuando blades due to their thicker tangs in comparison to the Moras and Helle blades. This particular blade had a drilled hole designed for pin placement however in my case, I was going to be using a hidden wooden peg instead of the usual polished brass pin. This peg would work to secure the steel to the handle and prevent slipping of the blade.
Two separate types of glue were used to mate the two halves. The most common method of fixing steel to wood is by using epoxy resin. For the wood-wood contact however, it was gorilla wood glue all the way. I clamped the pieces and let it sit for 24 hours.
Next came the difficulttask of actually shaping the handle. I decided that I was going to do this by hand. It was a laborious process of carving, filing and sanding. My influence for the handle came mostly from existing Helle models such as the Temagami and the Eggen. While many Scandinavian knives lacked any sort of finger groove, I knew that I wanted a fingerguard.
Carving and filing
The voyageur begins to take shape
When I was finally satisfied with the end result, it was time to sand it and put a finish on the handle. Ideally, you’d want the handle as smooth as possible before putting on any coats of oil or finish. The sandpaper should have a grit of at least 400. In this case, I wanted a simple finish that would bring out the grain and figure of the wood. I stuck with tried tested and true boiled linseed oil. After several coats, I then proceeded to apply layers of beeswax for further protection and to seal it.
In the end, I must say that I was overall happy with the result. The voyageur’s handle fits comfortably and the blade is fastened securely. The use of machines would definitely make the process faster and easier however I wanted my first one to be completed by hand.
